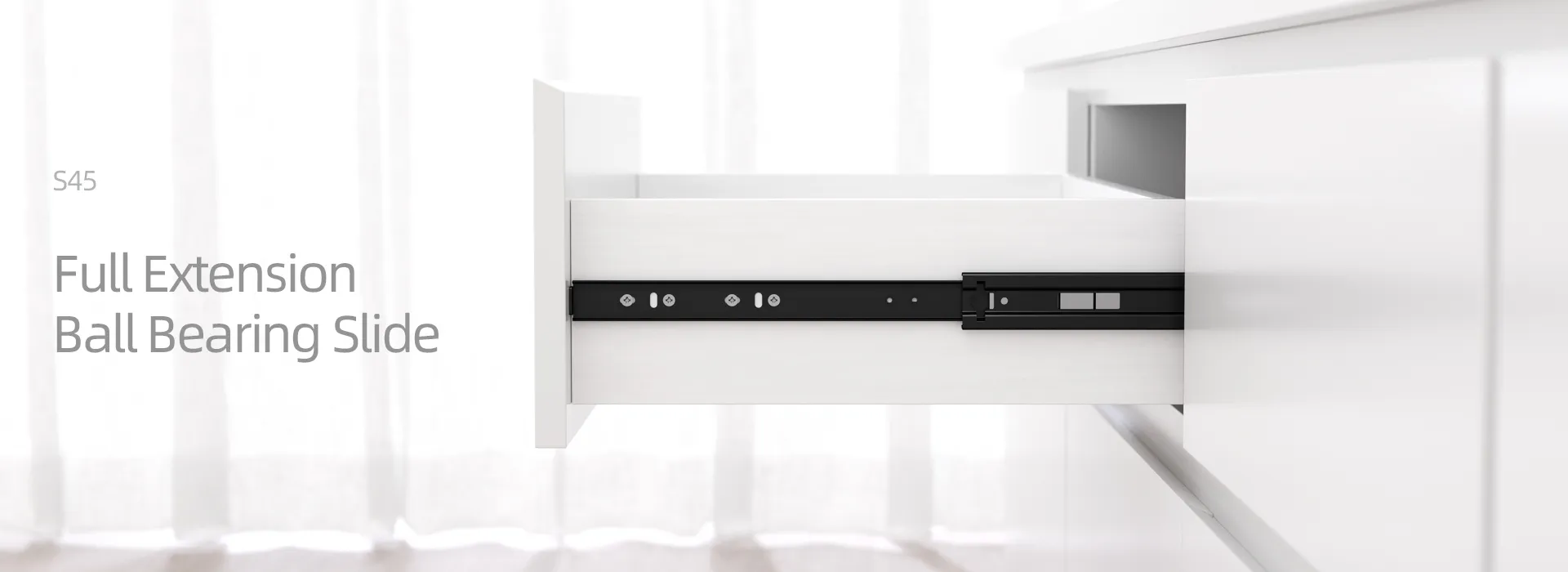

S45 full extension ball bearing slide

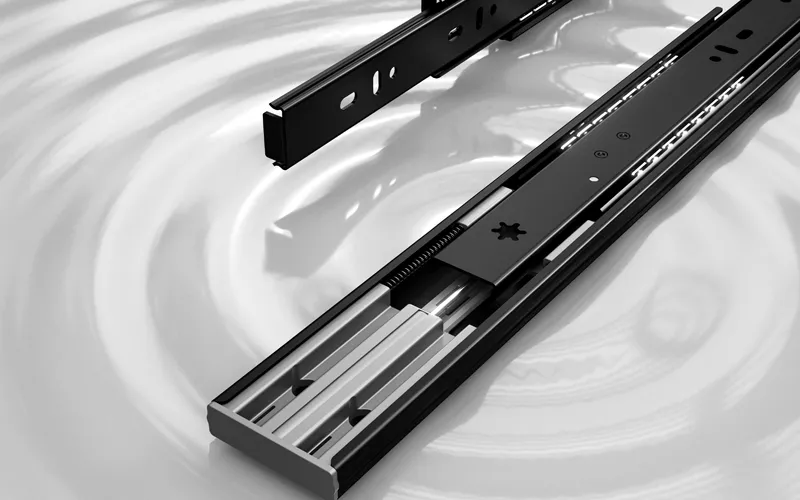

50,000-cycle durability and 24-hour salt spray test passed.

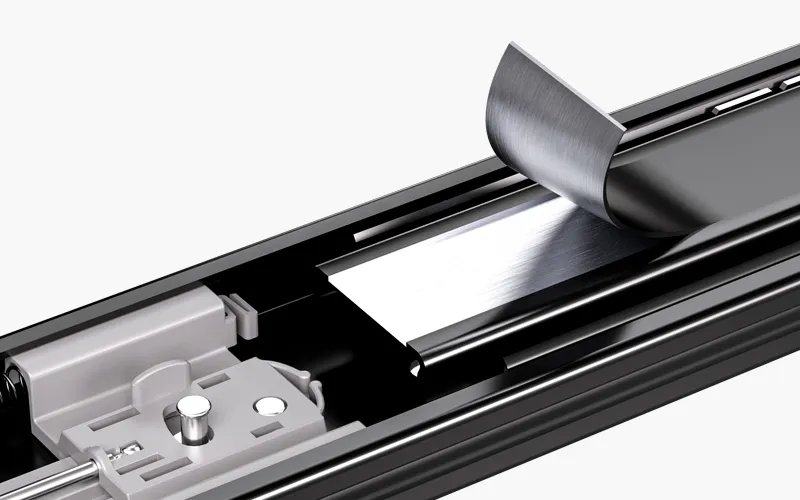

Premium material

Premium material with strong load capacity up to 45 kg, steel thickness options of 1.2/1.2/1.5 mm.

Versatile choices

Versatile choices in two colors (blue-zinc plated / electrophoretic black) and three functions (soft closing / push-to-open / standard).

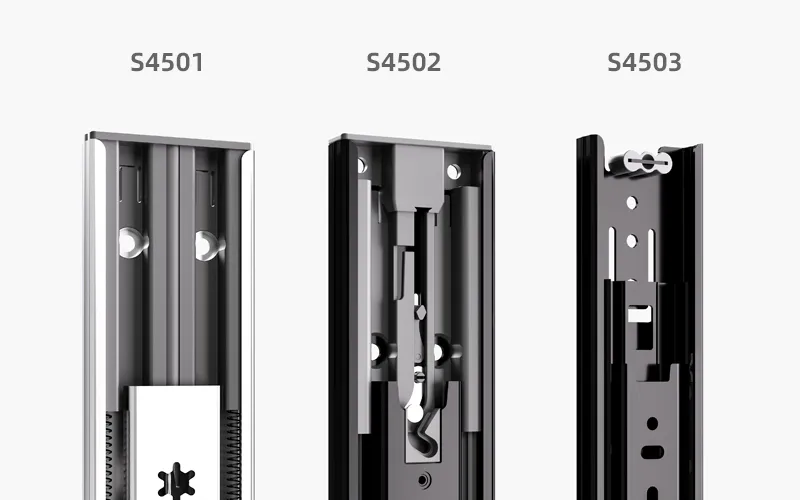

Product Family

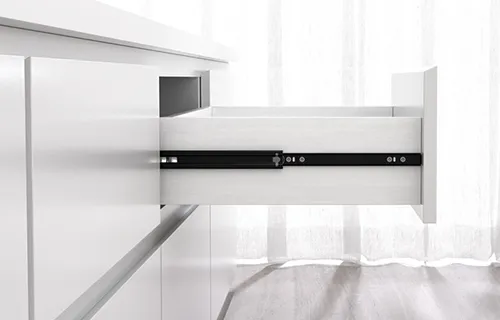

S4501A Full extension ball bearing slide

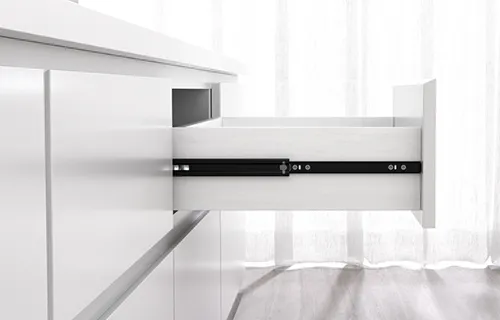

S4502A Full extension soft-closing ball bearing slide

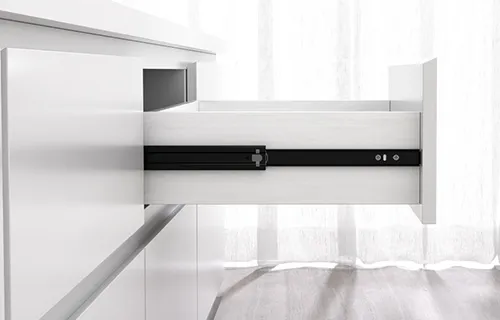

S4502B Full extension soft-closing ball bearing slide

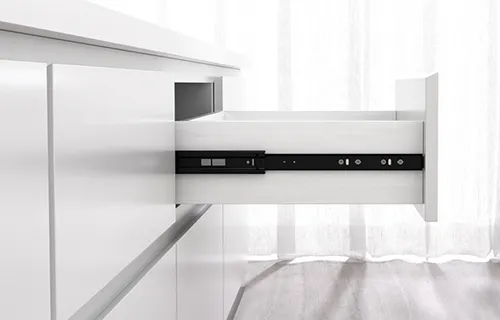

S4503A Full extension push to open ball bearing slide

Product Specifications

ProductWidth
ThicknessLengthLoading capacityFinishingMaterial thickness
S4501A45.7mm
12.7mm250-600mm45kg 18"black spray; zinc plated
1.2/1.2/1.5mm
S4501B44.8mm12.7mm250-600mm35kg 18"black spray; zinc plated1.0/1.0/1.2mm
S4502A45.7mm
12.7mm250-600mm35kg 18"black spray; zinc plated
1.2/1.2/1.5mm
S4502B44.8mm12.7mm250-600mm25kg 18"black spray; zinc plated1.0/1.0/1.2mm
S4503A45.7mm12.7mm250-600mm35kg 18"black spray; zinc plated1.2/1.2/1.5mm
