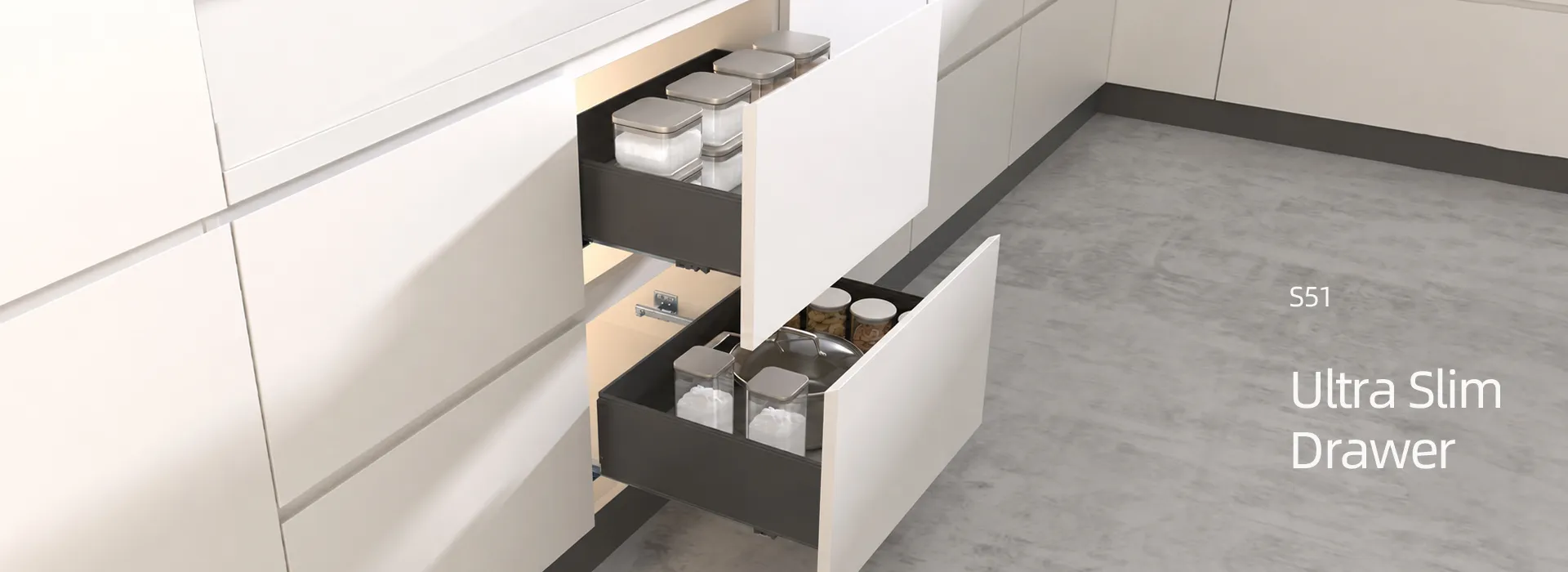

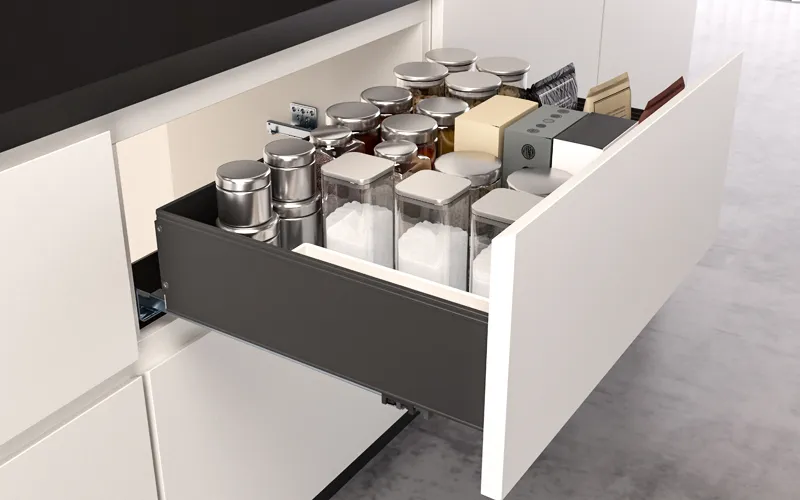

S51E Ultra Slim Drawer

1.2MM Ultra Slim Side Panel

Powder painting finish and corrosion resistant

Full Extension Design

Full extension undermount slide, invisible and silent performance, easy to pick up and store

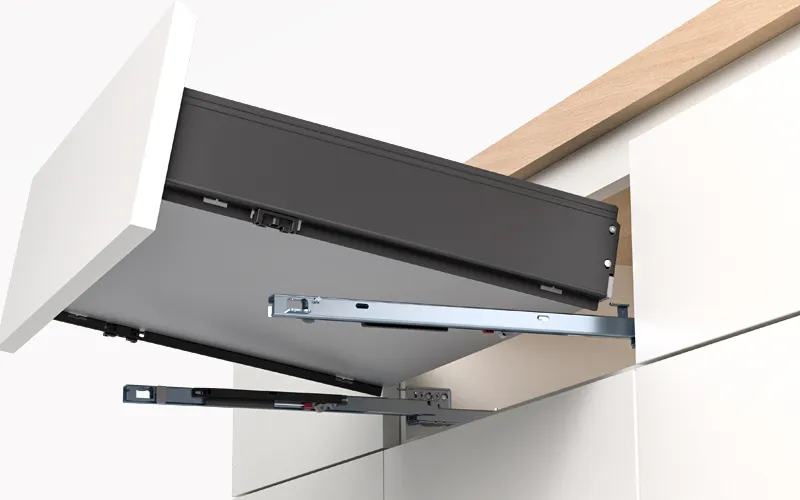

Easy assembly

Clip on fast release rail design, make assembly more convenient


Product Family

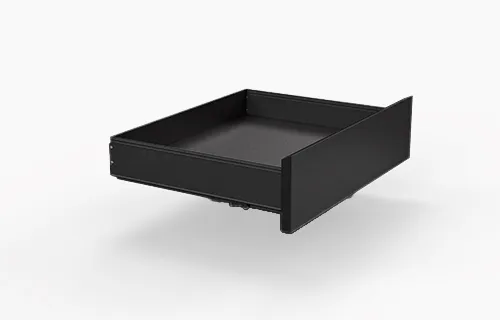

S51EL600 Ultra Slim Drawer (Low Drawer)Soft Closing Version

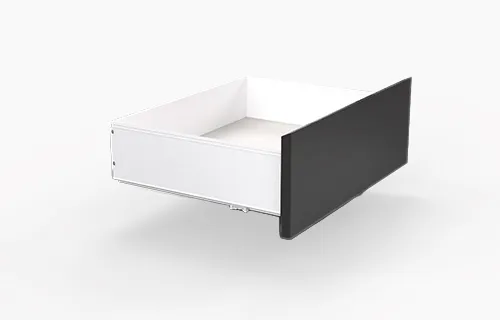

S51EM600 Ultra Slim Drawer (Medium Drawer)Soft Closing Version

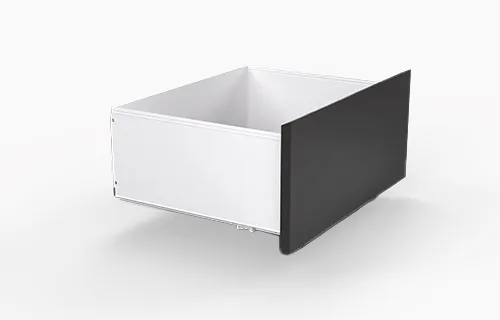

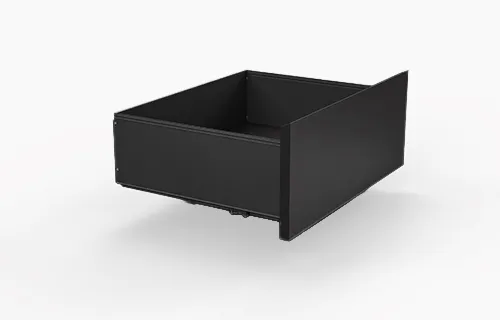

S51EH600 Ultra Slim Drawer (High Drawer)Soft Closing Version
S51EK600 Ultra Slim Drawer (Extra-High Drawer)Soft Closing Version

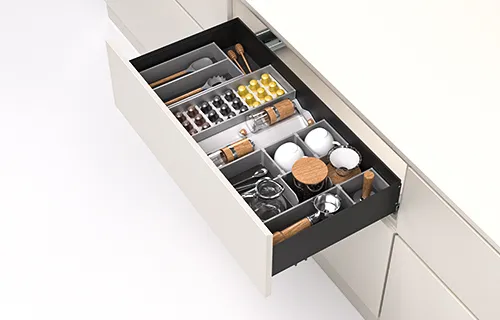

Complete Drawer Organization

S51 With Divider

Product Specifications

Load capacity35kg

Length

250-550mm

Height of side panels

Low89mm/Medium127mm/High157mm/Extra high194mm

Drawer height adjustment

0~+3mm

Drawer depth adjustment

0~+5mm
Drawer width adjustment±1.5mm
